DESCRIPTION

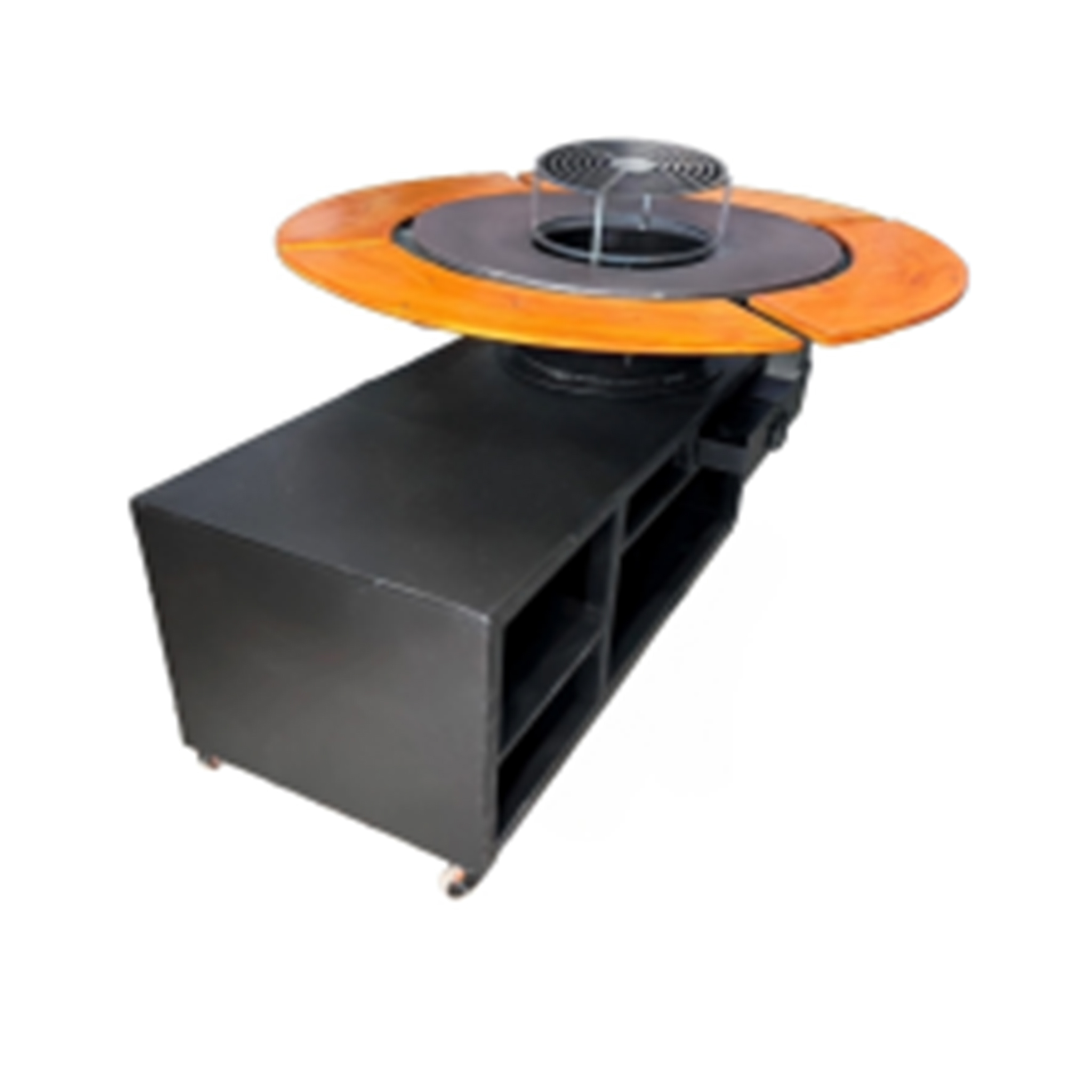

The grill consists of: support box, tub, hob, grill.
In order to be able to position a kettle above the hob, we offer you a kettle stand as a gift.
The support box is 130 x 60 cm with a height of 65 cm, it has 4 wheels, two of which can be locked for stability.
The drawer in the support box acts as an ashtray.
The tub has 4 mm sheet metal and is positioned above the support box.
The hob has 10 mm sheet metal and is positioned above the tub.
The cauldron support has a diameter equal to the stove’s feed hole, approximately 35 – 38 cm.
The stove’s diameter is 85 cm.
The total diameter including the wood on the edge is 130-135 cm.
The 2 cm thick wooden support is fixed to supports welded to the tank.
Before use, make a fire to burn off impurities, then grease with some fat and you can use the stove.
Keep away from moisture!
Do not open the ashtray while making the fire, to maintain a normal draft.
In these models, the draft is high and the wood burns faster.
As much as possible, use harder wood (beech, oak, hornbeam).
Specifications
Dimensions
Hob diameter 85 cm
Hob thickness 10 mm
Table height 65 cm
Table width 60 cm
Table length 130 cm
Diameter 133 cm
Height 90 cm
Tub (depth) 24 cm
